3D Printing Tolerances & Dimensional Accuracy: Complete Technical Guide 2026

3D printing accuracy depends on the technology used: FDM typically achieves ±0.2–0.5 mm, SLA ±0.05–0.1 mm, and SLS approximately ±0.3 mm. Understanding tolerances is key to getting parts that fit correctly the first time.

A tolerance is the maximum allowable deviation from the intended dimension. In 3D printing, it is influenced by the technology, material, print orientation, and parameter settings. This guide provides specific data, comparison tables, and practical advice for engineers, designers, and enthusiasts.

What Are Dimensional Tolerances in 3D Printing?

Tolerance is the difference between the nominal (intended) dimension and the actually printed dimension. It is written as ±X mm. For example, a tolerance of ±0.2 mm on a 50 mm part means the actual dimension will be 49.8–50.2 mm.

Three key factors affect tolerances in 3D printing:

Printing technology — each method has its own physical precision limit
Material — shrinkage and thermal expansion change dimensions during cooling
Orientation and geometry — layer height and overhangs determine accuracy in the vertical direction

Accuracy Overview by Technology

FDM (Fused Deposition Modeling)

FDM is the most widespread 3D printing technology. It works by melting and depositing thermoplastic layer by layer.

Typical FDM tolerances:

X/Y axis accuracy: ±0.2–0.5 mm
Z axis accuracy (layer height): ±0.1–0.3 mm (depends on layer height setting)
Material shrinkage: 0.3–1.5% (depends on material)

FDM is ideal for functional prototypes, custom parts, and small-batch production where 0.5 mm tolerance is acceptable.

SLA (Stereolithography) / MSLA (Masked SLA)

SLA cures photopolymer resin with UV light or a laser. It achieves significantly higher accuracy than FDM.

Typical SLA/MSLA tolerances:

X/Y axis accuracy: ±0.05–0.1 mm
Z axis accuracy: ±0.05 mm (layer height 25–100 µm)
Resin shrinkage: 0.1–0.5%

SLA is suitable for dental applications, jewelry, fine mechanical parts, and models requiring high surface detail.

SLS (Selective Laser Sintering)

SLS sinters polyamide (nylon) powder with a laser. It requires no supports and enables complex geometries.

Typical SLS tolerances:

Accuracy: ±0.3 mm or ±0.3% (whichever is greater)
Minimum wall thickness: 0.7–1.0 mm
PA12 shrinkage: approximately 3%

SLS is used for industrial components, piping, joints, and functional nylon parts.

Technology Accuracy Comparison Table

Parameter	FDM	SLA/MSLA	SLS
Typical X/Y tolerance	±0.2–0.5 mm	±0.05–0.1 mm	±0.3 mm
Typical Z tolerance	±0.1–0.3 mm	±0.05 mm	±0.3 mm
Min. wall thickness	0.8–1.2 mm	0.3–0.5 mm	0.7–1.0 mm
Layer height	0.1–0.3 mm	0.025–0.1 mm	0.1–0.12 mm
Supports required?	Yes	Yes	No
Surface quality	Visible layers	Smooth	Finely grained
Common materials	PLA, PETG, ASA, Nylon	Resin	PA12, PA11, TPU

How to Design Parts with Tolerances in Mind

Clearance Between Parts (Fits)

For correct mating of two printed parts, you need to add a clearance allowance:

Loose fit (free rotation/sliding): add 0.3–0.5 mm per side
Sliding fit (precise guidance): add 0.15–0.25 mm per side
Press fit: add –0.1 to 0.0 mm, or use metal threaded inserts

Hole Diameters

FDM-printed holes tend to be 0.1–0.5 mm smaller due to material ooze. Recommendation:

If you need a 10 mm hole, model it as 10.3–10.5 mm
For threaded holes, use metric taps or metal threaded inserts (helicoil)

Print Orientation

Z-axis accuracy is worse than X/Y accuracy in FDM and SLA (due to layer height). Orient critical dimensions in the X/Y plane:

Shaft diameters → parallel to the print bed
Hole depths → perpendicular to the bed
Precise surfaces → as close to perpendicular to the print axis as possible

Shrinkage and Warping

Materials shrink by 0.3–3% after printing. For critical parts:

Print test samples and measure actual dimensions
Add a compensation factor in your slicer settings
For large parts, consider annealing to stabilize dimensions

What Accuracy Do You Need?

Application	Recommended Accuracy	Suitable Technology
Decorative objects	±0.5–1 mm	FDM
Functional prototypes	±0.2–0.5 mm	FDM
Enclosures (electronics)	±0.2–0.3 mm	FDM (quality printer)
Gears, joints	±0.1–0.2 mm	SLA or FDM (PETG/Nylon)
Dental models, jewelry	±0.05–0.1 mm	SLA
Industrial functional parts	±0.2–0.3 mm	SLS
Aerospace/automotive components	±0.05–0.1 mm	SLA or metal printing

How Niro3D Ensures Accuracy

At Niro3D, we use professional FDM printers with calibrated nozzles and continuous quality control. For every order:

We calibrate material flow (flow calibration) based on the current filament
We set shrinkage compensation per material
We check the first layer and sample part dimensions

For parts requiring accuracy below ±0.3 mm, we recommend consulting our team — we will help you choose the right technology and print orientation.

Key Takeaways

FDM: ±0.2–0.5 mm, accessible, suitable for 90% of functional applications
SLA: ±0.05–0.1 mm, most accurate plastic technology for fine parts
SLS: ±0.3 mm, no supports, ideal for complex industrial components
Always adapt your design to the technology's tolerances — design clearances, test prototypes
Print orientation significantly affects the accuracy of critical dimensions

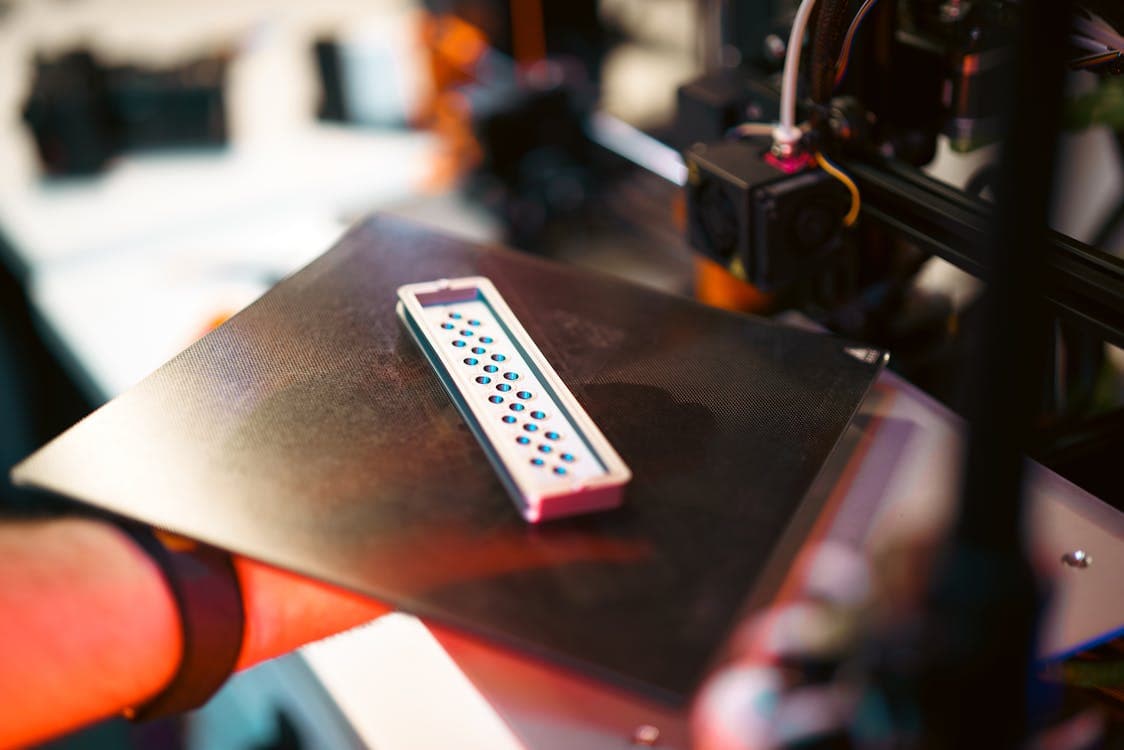

Photo: Jakub Zerdzicki via Pexels
